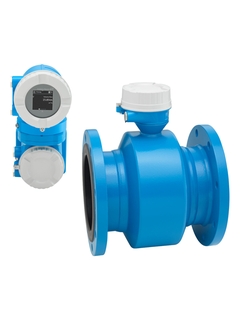

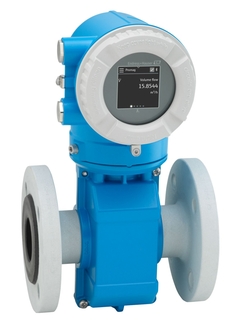

Proline Promag W 10

 電磁流量計

各類水和污水標準應用場合的理想選擇，操作簡單

應用

?雙向流量測量，完全不受壓力、密度、溫度和粘度的影響

?原水取水等基本測量任務的理想選擇

儀表特點

?通過國際飲用水認證

?IP68, Type 6P 防護等級

?支持 HART 和 Modbus RS485 系統集成

?安裝 app，選配顯示單元，操作靈活

優勢

?測量可靠：無需直管段，仍保持恒定測量精度，無壓損

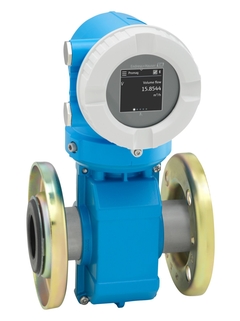

  ?靈活工程設計：傳感器采用固定法蘭或松套法蘭連接

?應用廣泛：通過 EN ISO 12944 防腐認證，允許埋地安裝或

水下測量

?更高工廠可用性：傳感器符合行業特定要求

?最優操控性：使用安裝 SmartBlue app 的移動設備，或通

過觸摸屏顯示單元操作

?調試簡單高效：引導式儀表組態預設置和現場設置

?帶自校驗功能：采用 Heartbeat Technology 心跳技術

• 測量原理                           電磁

• 產品標題

• Flowmeter for basic water and wastewater applications with easy-to-use operation concept.

                        Reliable measurement at constant accuracy with 0 x DN inlet run without pressure loss.
                        Suitable for elementary measurement tasks such as raw water intake.

•


• 公稱口徑范圍           DN 25 to 3000(1 to 120")

• 接液部件材質           Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)

                                     Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
                                     Liner material PTFE: –20 to +90 °C (–4 to +160 °F)
                                     Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)

• 測量變量                  Volume flow, conductivity, mass flow

• 最大測量誤差            Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

• 測量范圍                   0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)

• 最大過程壓力            PN 40, Class 300, 20K

• 介質溫度范圍

  Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
  Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
  Liner material PTFE: –20 to +90 °C (–4 to +194°F)

•


• 環境溫度范圍

  -40 to 60°C (-40 to 140°F)

•


• 傳感器外殼材質

  DN 25 to 300 (1 to 12"): AlSi10Mg, coated
  DN 350 to 2000 (14 to 78"): Carbon steel with protective varnish

•


• 變送器外殼材質

  Polycarbonat; AlSi10Mg, coated

•


• 防護等級

  Compact version: IP66/67, type 4X enclosure
  Sensor remote version (standard): IP66/67, type 4X enclosure
  Sensor remote version (option): IP68, type 6P enclosure, with protective varnish according to EN ISO 12944 C5-M/Im1/Im2/Im3

•


• 顯示/操作          LCD display with touch & auto rotate

• 輸出                  4-20 mA HART (active/passive), Pulse/frequency/switch output

                               Modbus RS485, 4-20 mA

• 數字通信           HART, MODBUS RS485

• 電源                 DC 24 V

                              AC 100 to 230 V
                              AC 100 to 230 V / DC 24 V (non-hazardous area)

• 防爆認證          CSA, GP, KC

• 計量認證和證書

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TüV SüD attestation)

•


• 壓力認證和證書  CRN, PED

• 材料證書         3.1 material

• 衛生型認證和證書

  Drinking water approvals: ACS, KTW-BWGL, NSF 61, WRAS BS 6920

該系列產品常備大量現貨：

5WBB25-AADAMBJA0AQD32GAA1+AK

5WBB32-AADAEBKA0AQD211AA1+AK

5WBB32-AADAMBJA0AQD32GAA1+AK

5WBB40-AADAMBJA0AQD32GAA1+AK

5WBB50-AADAEBKA0AUD210AA1+AK

5WBB50-AADAEBKA0AQA121AA1+AK

5WBB65-AADAEBKA0AQD211AA1+AK

5WBB80-AADAEBKA0AUD210AA1+AK

5WBB1H-AADAEBKA0AUD210AA1+AK

5WBB1Z-AAEADBKA0AHD3K0AA1+AA

5WBB1F-AADAEBKA0AUD210AA1+AK

5WBB2H-AADADBKA0AUD340AA1+AA
